81300A Net-rope sewing machine

product description

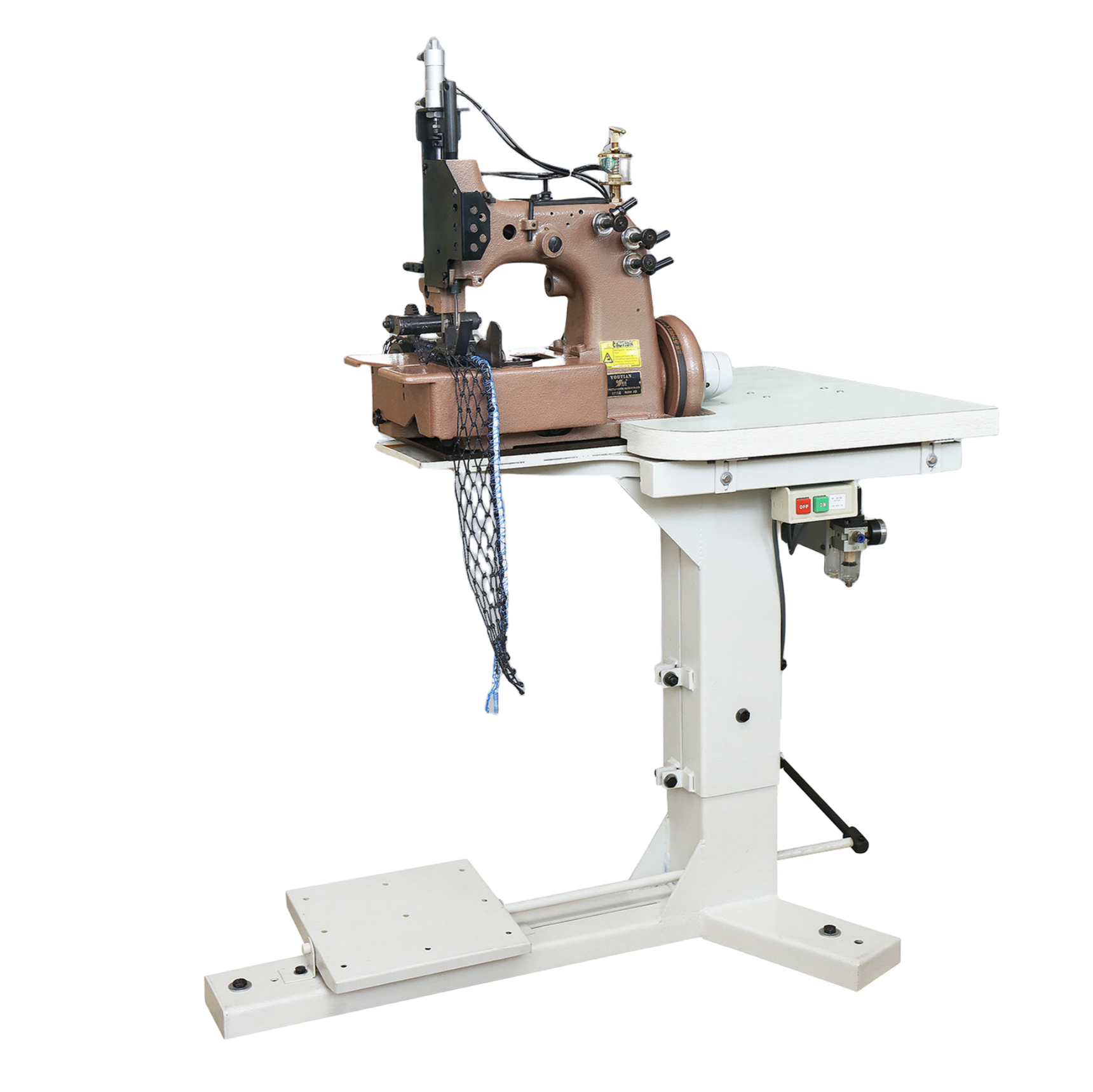

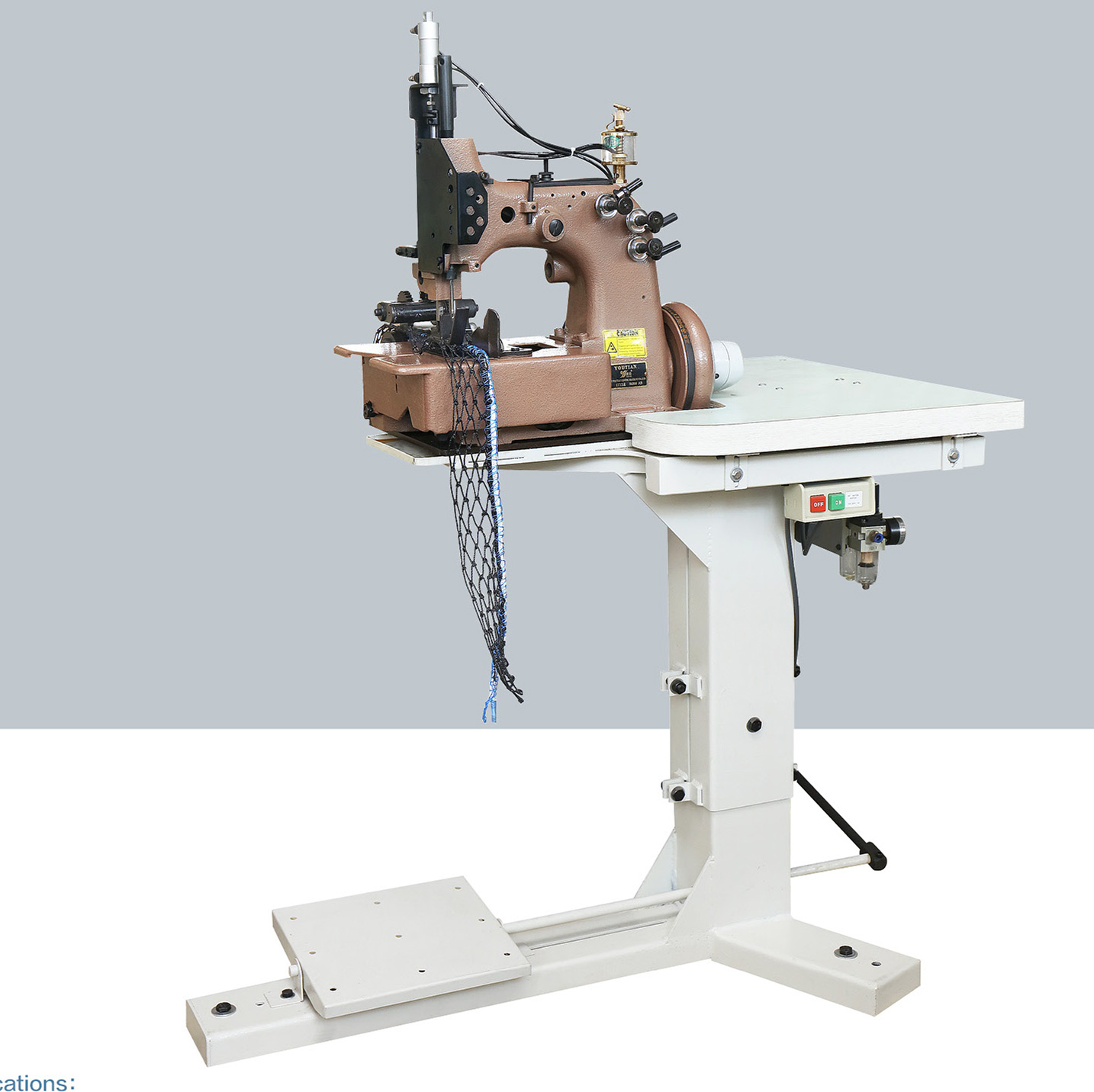

81300A Fishing net-rope sewing machine

Single-Needle, Three-Thread, High-Throw Overedge Mach. with Plain Feed and Double-Act. Puller, for Att. Ropes 10 - 16 mm Diam. to Various Kind of Nets

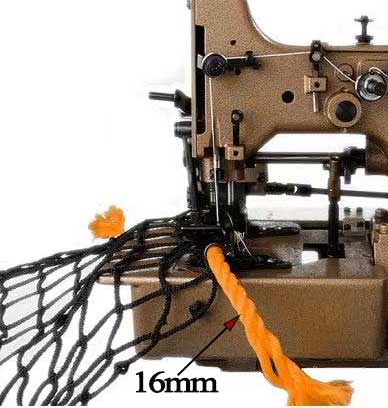

Single-needle, three-thread, high-throw overedge machine with plain feed and double-action intermittent puller. Two upper rollers and one lower roller mechanically driven. Pneumatic presserfoot. For attaching ropes from 10 - 16 mm diameter to various kinds of nettings as border and for tensioning, specially on sports nets and nets for safety and protection. For netting sewn parallel to the mesh, no feed dog is used and throat plate has no slots, only the puller feeds fabric (standard). For netting sewn diagonal to the edge, a feed dog and a throat plate are included, this allows better positioning of the strings.
Extra set of parts for attaching ropes 4 - 12 mm diameter available upon request and at extra charge.

Technical Parameters

Stitches/min	1200
Stitch range	4-12mm
Standard setting	10mm
Capacity under presser foot	16mm
Thread chain and tape cutter	(Ohne)
Lubrication	Manual lubrication
Standard needle	9853GA 300/120
Stitch types	504
Feed type	Top and bottom feed
Closures	Plain seam
Needles	1
Installation	Table assembly
Net weight	134
Gross weight	204
Package size	12278149cm
