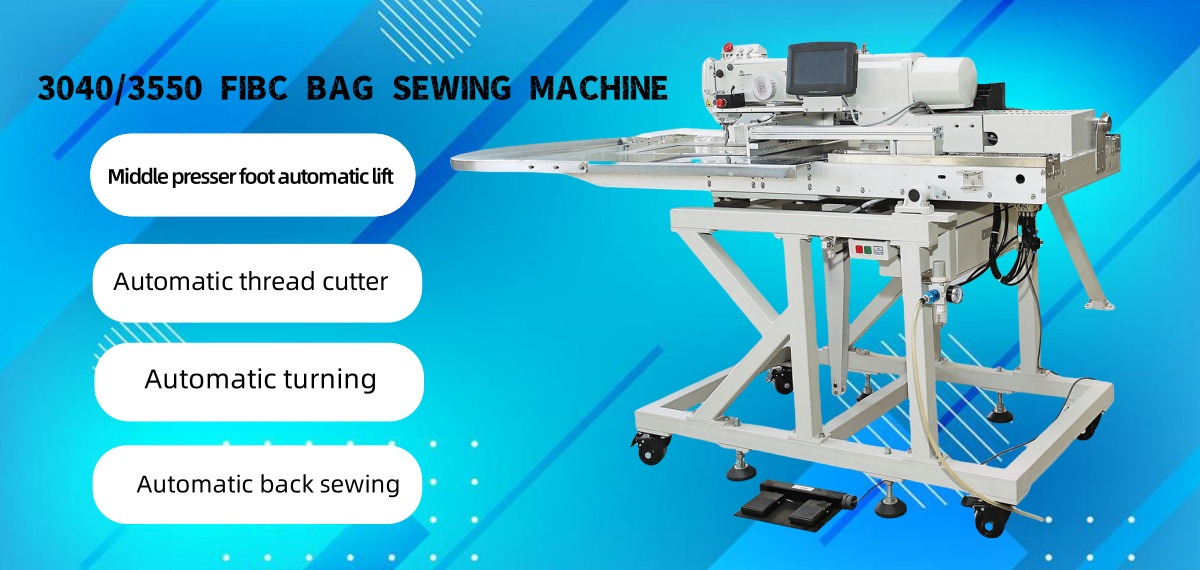

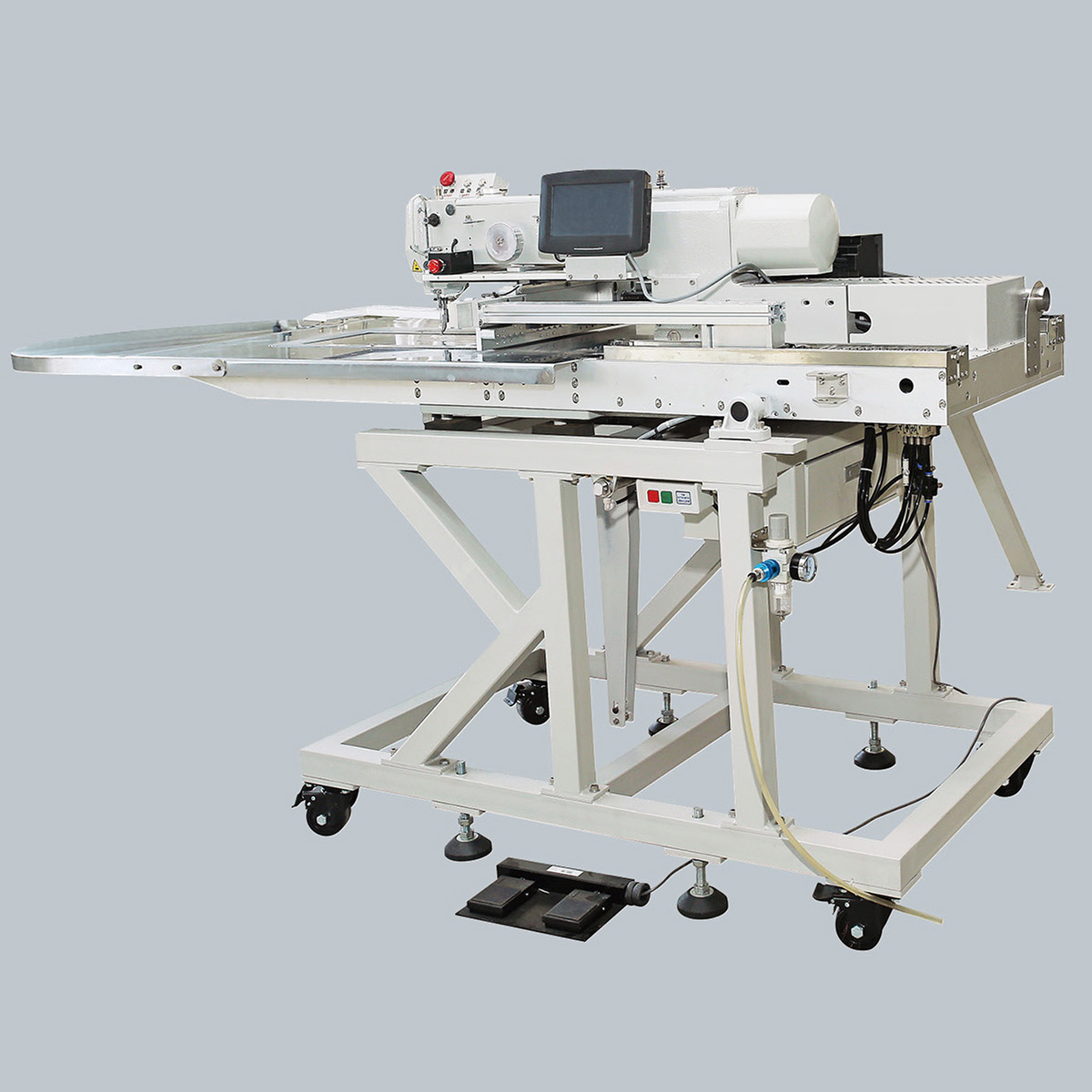

3040/3550 Fibc bag middle sling/bottom sling pattern sewing machine

Function introduction:

Automatic thread cutter
Middle presser foot automatic lift
Automatic turning
Automatic back sewing
Zoom in and out
Shape display
Shape copy
Noice prompt
Ouick holder

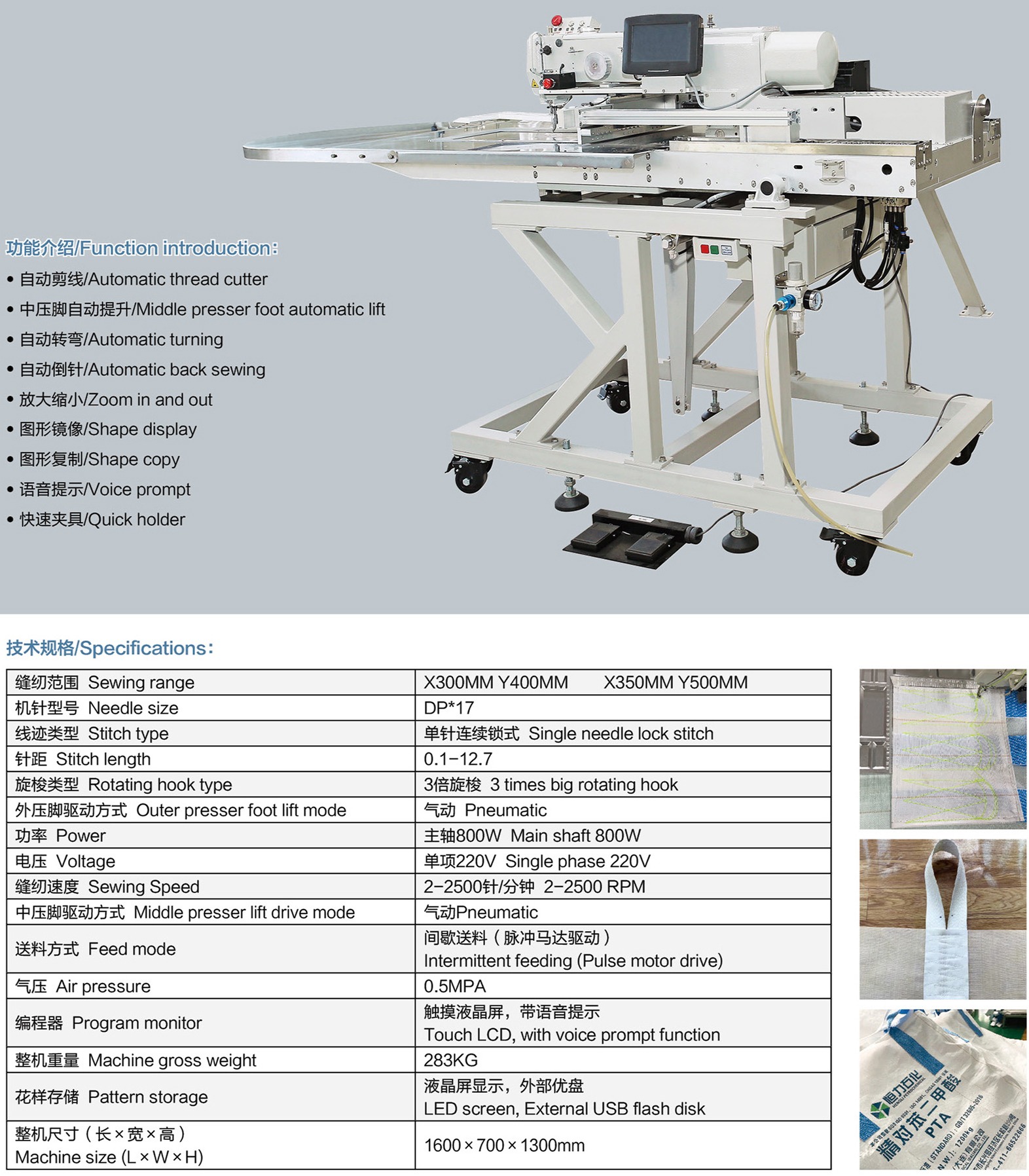

Technical Parameters

Sewing range	X300MM Y400MM X350MM Y500MM
Needle size	DP*17
Stitch type	Single needle lock stitch
Stitch length	0.1-12.7
Rotating hook type	3 times big rotating hook
Outer presser foot lift mode	Pneumatic
Power	Main shaft 800W
Voltage	Single phase 220V
Sewing Speed	2-2500 RPM
Middle presser lift drive mode	Pneumatic
Feed mode	intermittent feeding (Pulse motor drive)
Air pressure	0.5MPA
Program monitor	Touch LCD, with voice prompt function
Machine gross weight	283KG
Pattern storage	LED screen, External USB flash disk
Machine size (L x WxH)	1600x700x1300mm
