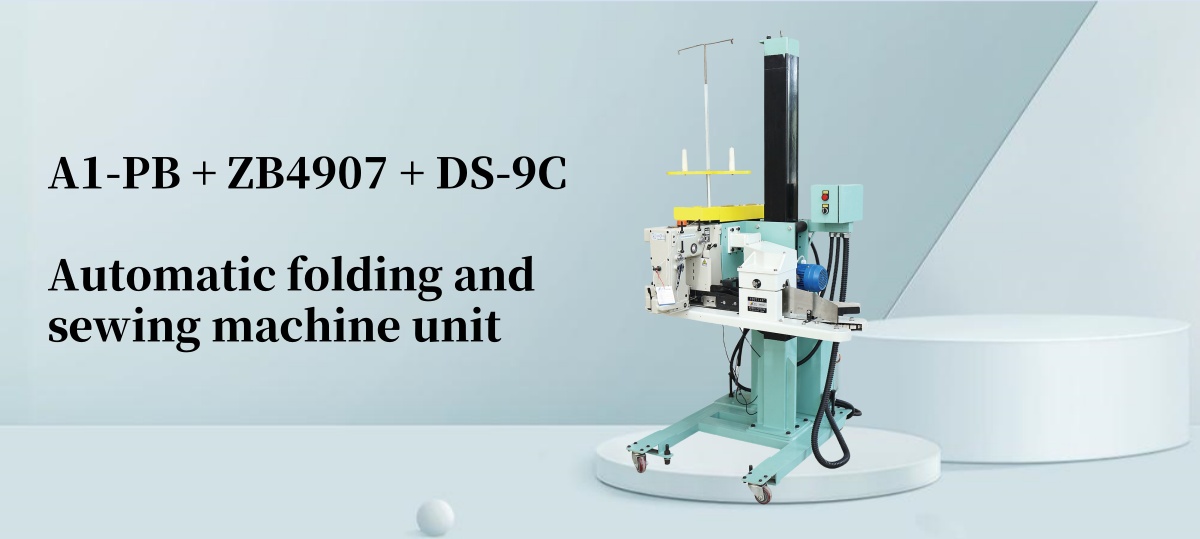

A1-PB+ZB4907+DS-9C Automatic bag closing machine

A1-PB Automatic bag folding and sewing automatic packaging machine is suitable for automatic folding and sewing of kraft paper or plastic woven bag mouth.It is widely used in grain, feed, chemical industry and other industries. The automatic folding sewing machine adopts photoelectric control, which can automatically and continuously complete folding, stitching and cutting braid of kraft paper or plastic woven bags. lts air supply system realizes braid cutting and oil mist lubrication.The height of the machine can be adjusted according to the size of the bag. The automatic bag folding sewing machine can be combined with automatic quantitative weighing packaging machine,conveyor and other automatic production lines.

Technical Parameters

Sewing head height	720-1220mm(From ground to needle)
Motor type	4P,3Ph，0.75kw/0.4kw(Up to sewing speed)
Start and stop	Photo switch
Sewing head	YTDS-9C
Max speed	2700rpm
Stitch length	7-10.5mm(Standard 10mm)
Stitch type	Single needle double thread chainstitch
Cutter	Pneumatic cutter
Air pressure	0.4MP/cm?
Air consumption	3.5NL/min
Lubrication	Automatic lubrication
Oil injunction	1740cc
Wheel diameter	100mm(Speed changeable wheel need order)
Needle size	DR-H30#26
Thread type	20/6,20/9Synthetic fibers or cotton yarns
