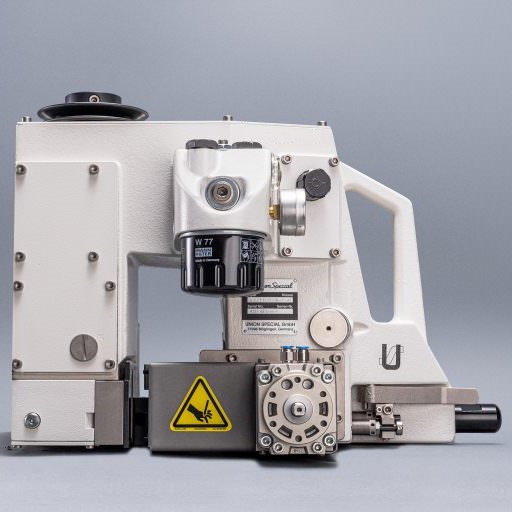

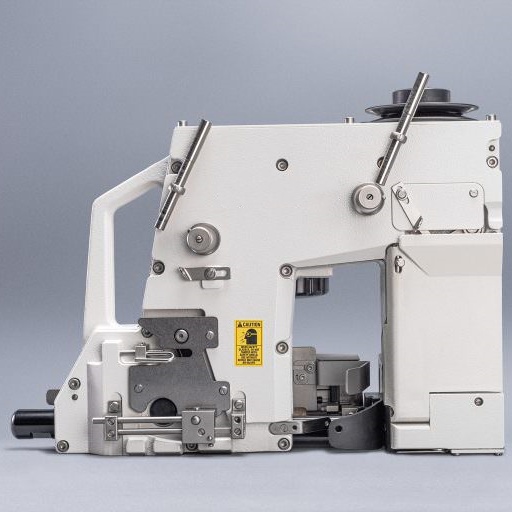

BC200 Fastest Bag Closing Machine Head

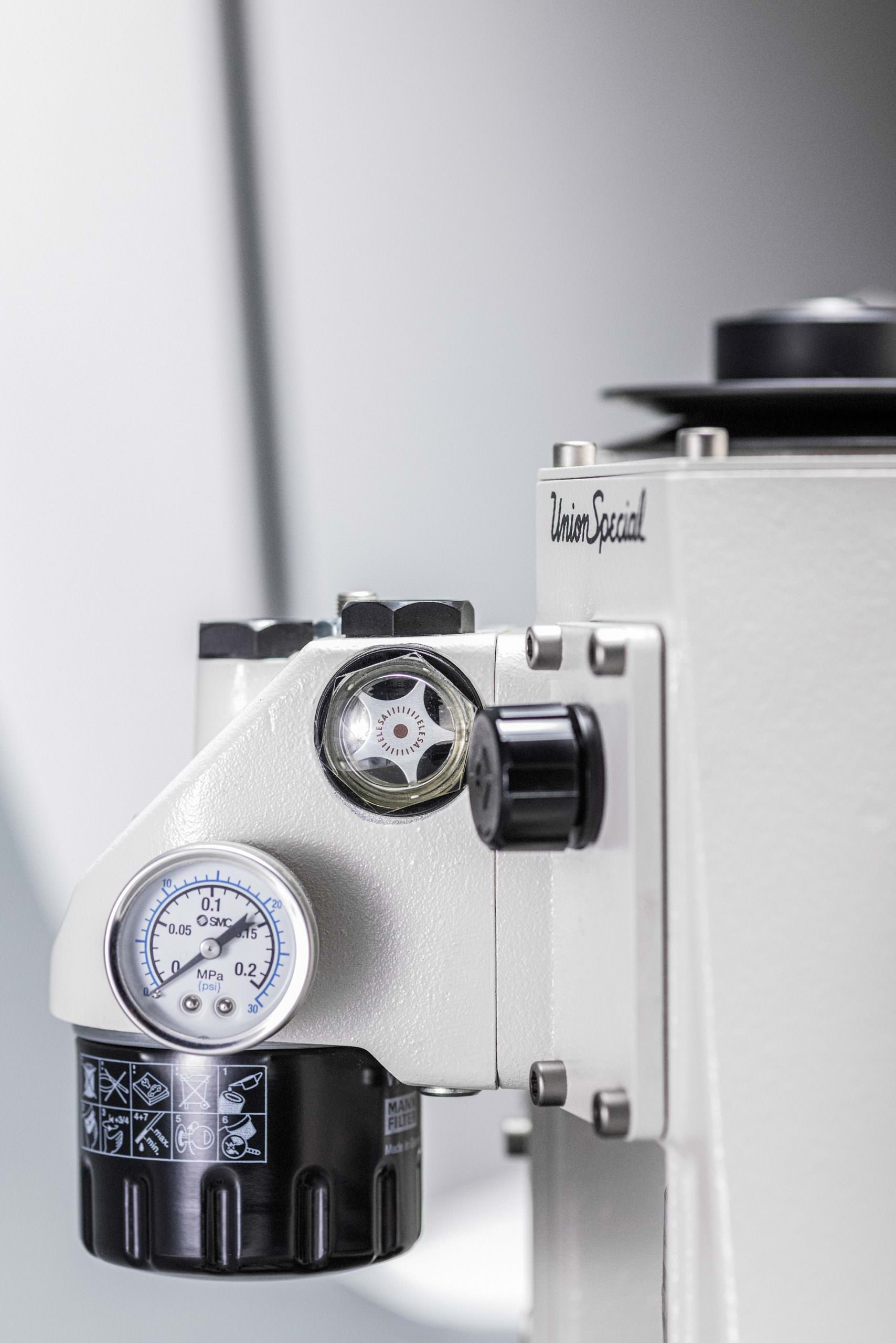

Automatic high performance bag closing machine for use in bag closing equipment. Due to the internal oil pressure lubrication, best suitable for use in dusty environments and especially in the food industry, because no oil can get on the products. In addition, the machines can be used in ATEX zone 22. Depending on your needs, you can choose between different cutting mechanisms and machine controls. We will be happy to advise you on the appropriate selection of your machine.

One needle, high throw, internal forced lubrication, with automobile type filter, totally enclosed plain feed mechanism, totally enclosed looper mechanism, independently driven rear needle quard with no reajustment required when changing stitch length, built in mechanical chain cutter, and presser foot with independently spring loaded chaining section.

Technical Parameters

Speed	2750rpm
Stitch range	6.5-12.5mm
Stitch standard setting	8mm
Capacity under presser foot	12.7mm
Working diameter of variable pitch hand wheel	90mm
Sewing capacity under paper bagg	up to 32 piles depending on weight of paper
Net weight	41kg
