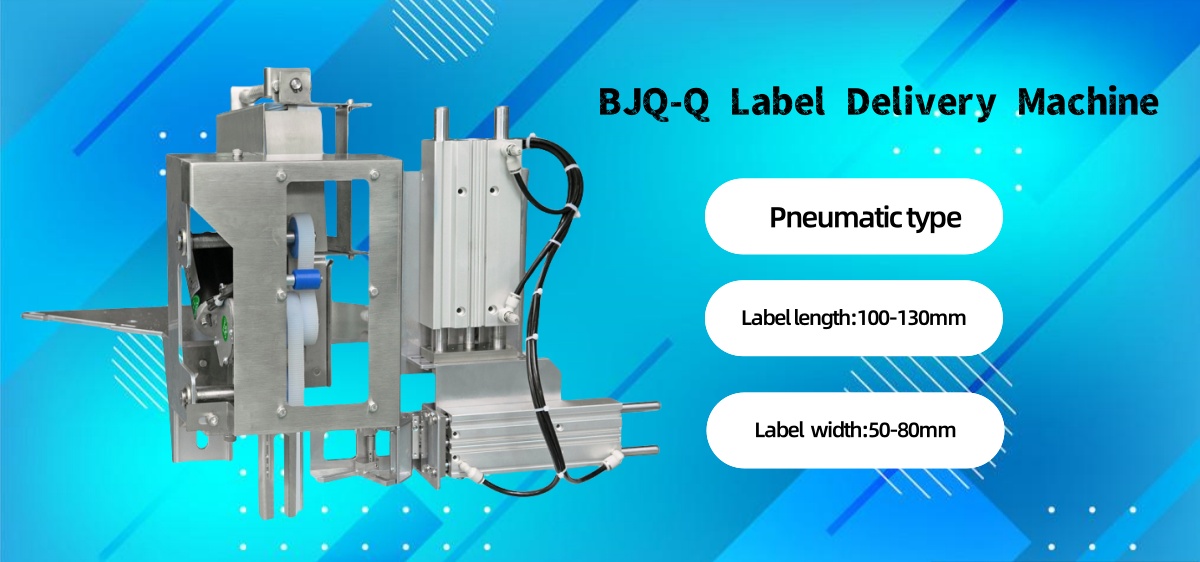

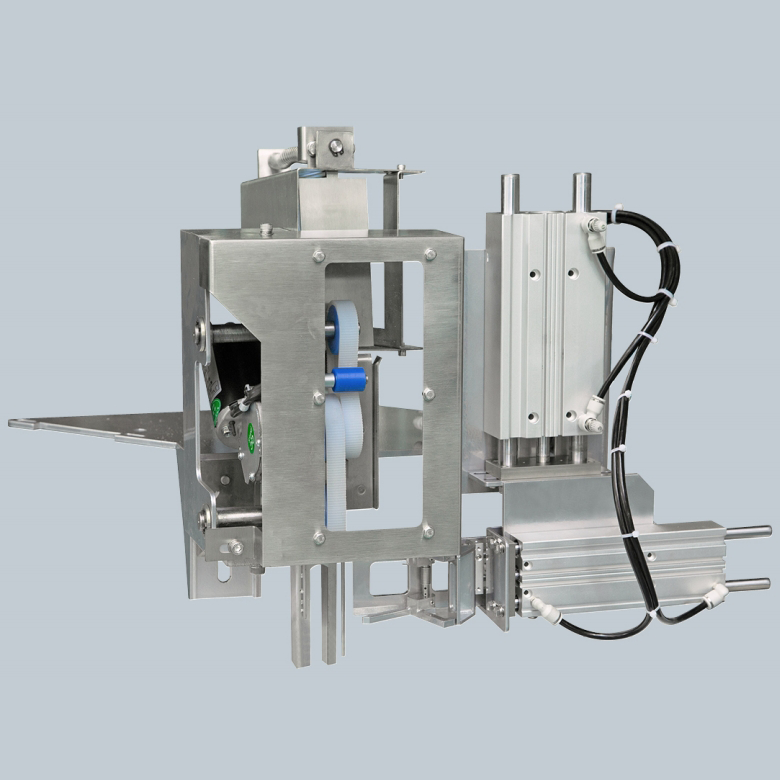

BJQ-Q Labeling machine

Product description:
This product consists of a motor control system, a belt conveyor system, and a mechanical gripper system. The whole machine is controlled by a photoelectric switch for start stop operation, and its speed can be adjusted arbitrarily according to the production line speed.The whole machine is exquisitely designed, easy to operate,and suitable for automatic labeling of bag openings in various industries.

Technical Parameters

Machine size	680453681mm
The operating environment of this machine	from minus 5 degrees Celsius to over 40 degrees Celsius
Pressure request	0.4-0.5Mpa
Start and stop	Photo switch and air cylinder
Label quantity capacity	about 300 pcs
Label material	Kraft paper bag or adhesive paper bag
Label width	50-80mm
Label length	95-130mm
Machine weight	20
