YTDS-9CF Fastest bag closing machine
product description

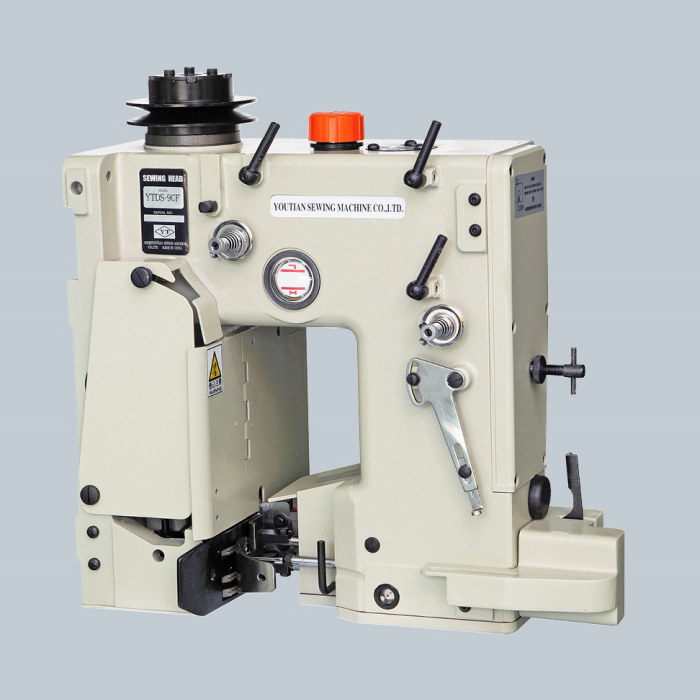

YTDS-9CF Fastest bag closing machine


YTDS-9CF sewing machine is from left to right, and it is areverse machine head. l adopts a sealed buit-in oil tank lubrication system,which is a bag opening sewing machine with a relatively fast sewing speed on the market today, suitable for various bags. t is ideal for use in combination with high-speed bag production lines, with a speed of 25 meters per minute. All components are dust-proof components. l uses a simple closed-type oil lubrication system, which prolongs the service life of moving parts and reduces maintenance costs.

Technical Parameters
Machine speed 0-2700RPM
Working speed 0-2500RPM
Stitch length 7-11.5mm
Stitch type Double thread chain stitch(401)
Needle model DR-H30#26
Cutter method Paper bag cutter
Lubrication Build-in oil tank lubrication system
Machine weight 42kg
Dimension 410x250x400(mm)
