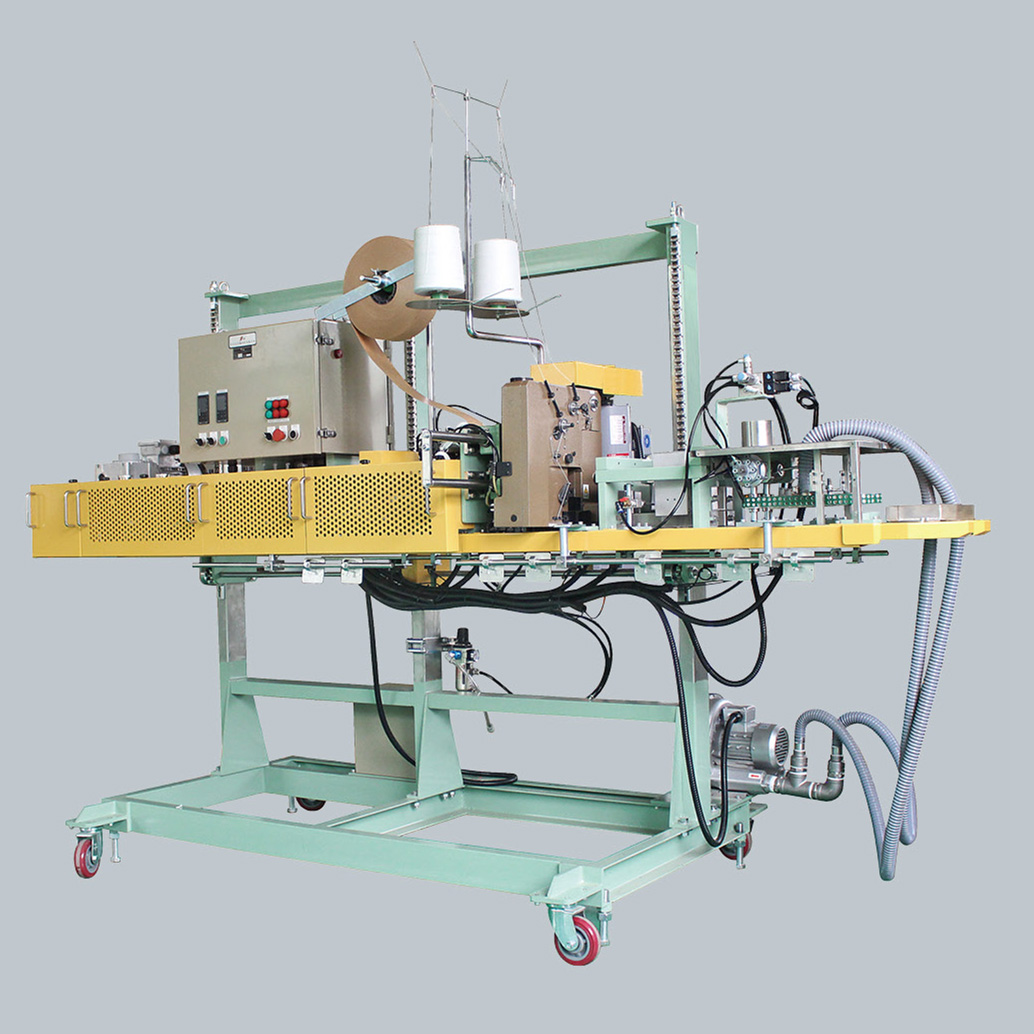

KS-14 Automatic heat sealing packaging machine
product description

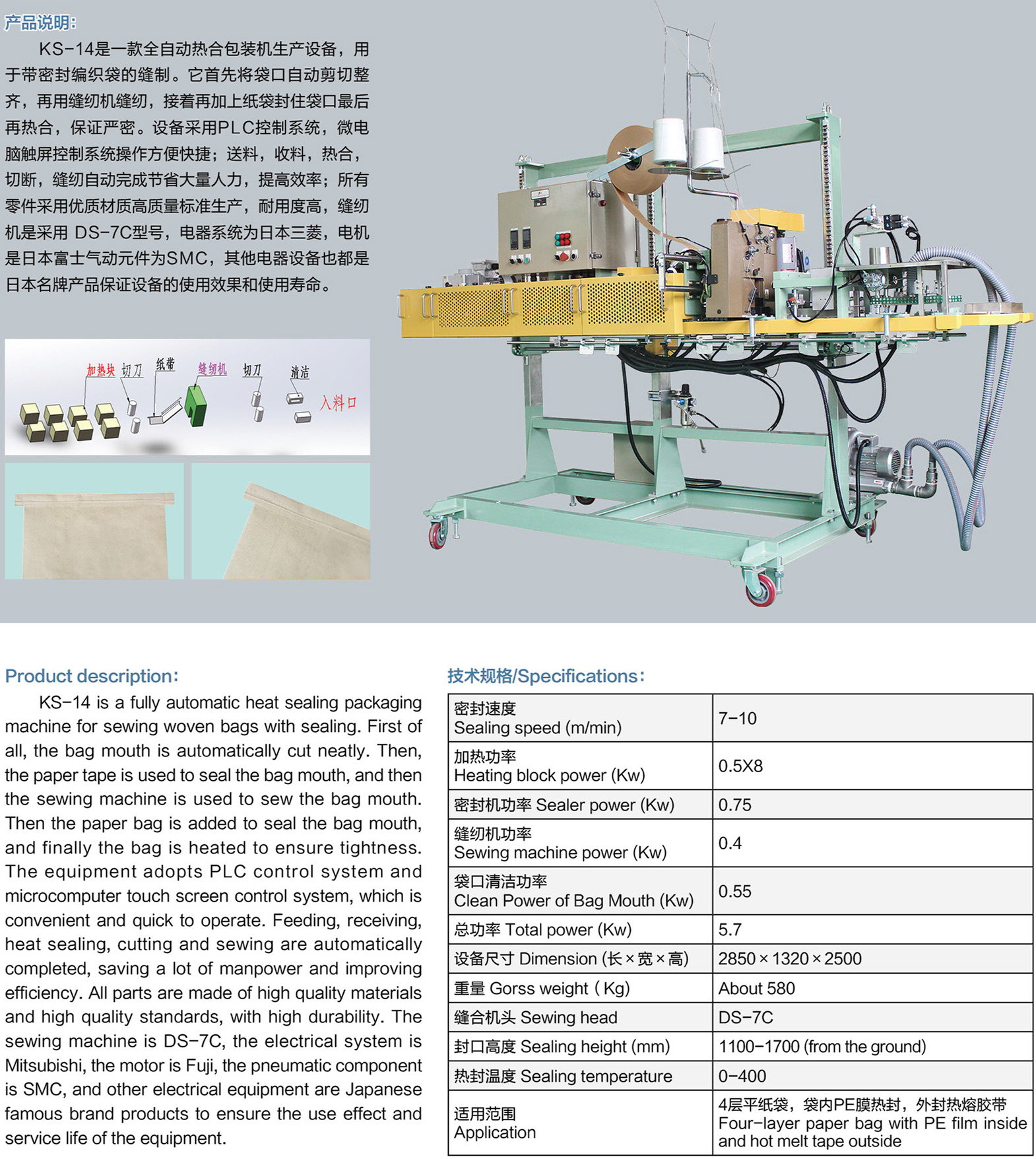

Product description:
KS-14 is a fully automatic heat sealing packaging machine for sewing woven bags with sealing.First of all, the bag mouth is automatically cut neatly. Then,the paper tape is used to seal the bag mouth, and then the sewing machine is used to sew the bag mouth.Then the paper bag is added to seal the bag mouth and finally the bag is heated to ensure tightness The equipment adopts PLC control system and microcomputer touch screen control system, which is convenient and quick to operate.Feeding,receiving.heat sealing, cutting and sewing are automatically completed,saving a lot of manpower and improving efficiency. All parts are made of high quality materials and high quality standards, with high durability. The sewing machine is DS-7C, the electrical system is Mitsubishi, the motor is Fuji, the pneumatic component is SMC, and other electrical equipment are Japanese famous brand products to ensure the use effect and service life of the equipment.
Technical Parameters | Sealing speed (m/min) | 7-10 |
| Heating block power (Kw) | 0.5X8 |
| Sealer power(Kw) | 0.75 |
| Sewing machine power (Kw) | 0.4 |
| Clean Power of Bag Mouth (Kw) | 0.55 |
| Total power(Kw) | 5.7 |
| Dimension | 2850x1320x2500mm |
| Gorss weight(Kg) | About 580 |
| Sewing head | DS-7C |
| Sealing height(mm) | 1100-1700 (from the ground) |
| Sealing temperature | 0-400℃ |
| Application | Four-layer paper bag with PE film insideand hot melt tape outside |
