SZ-3 Stainless steel pedestal

Product description:

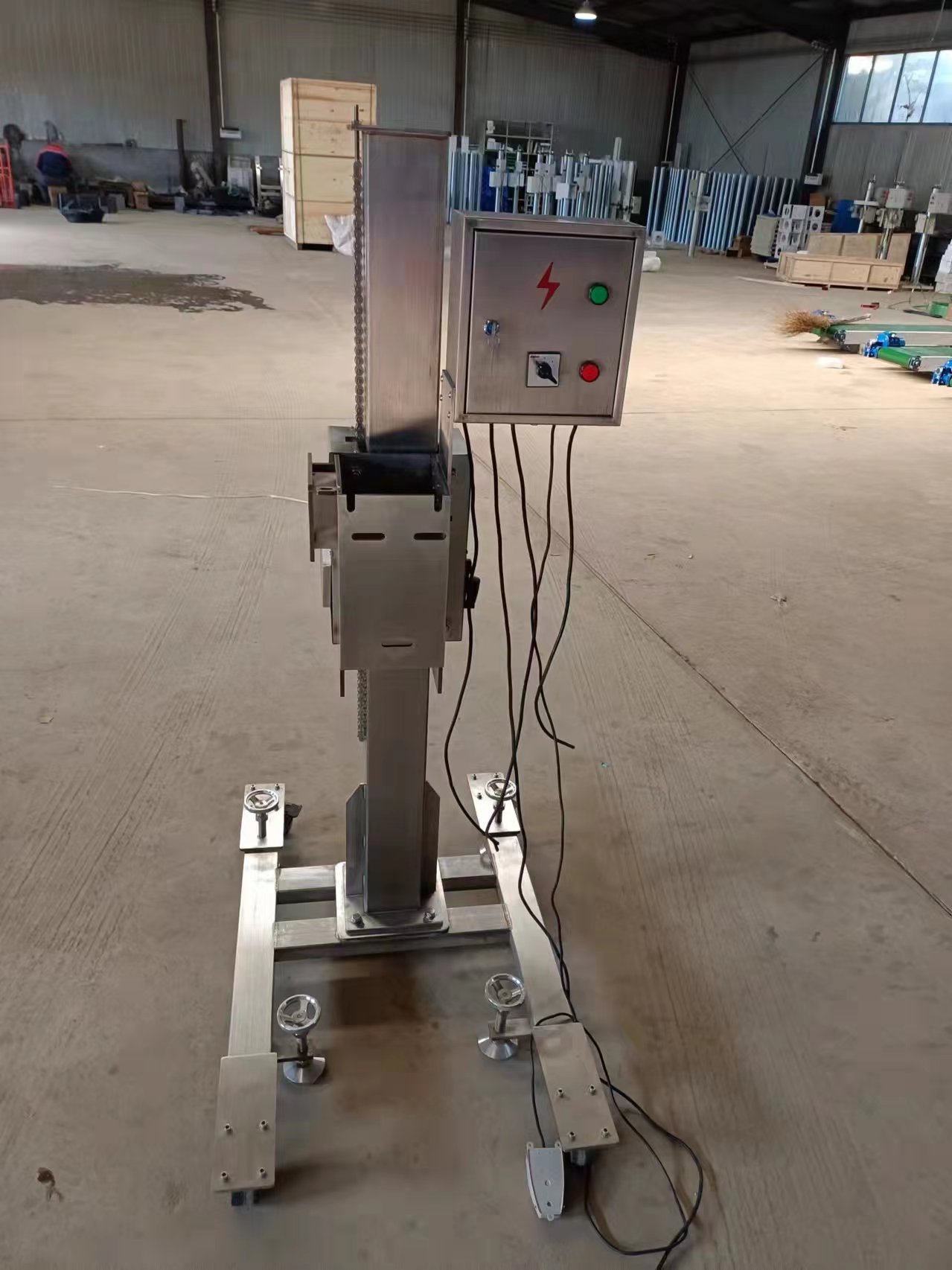

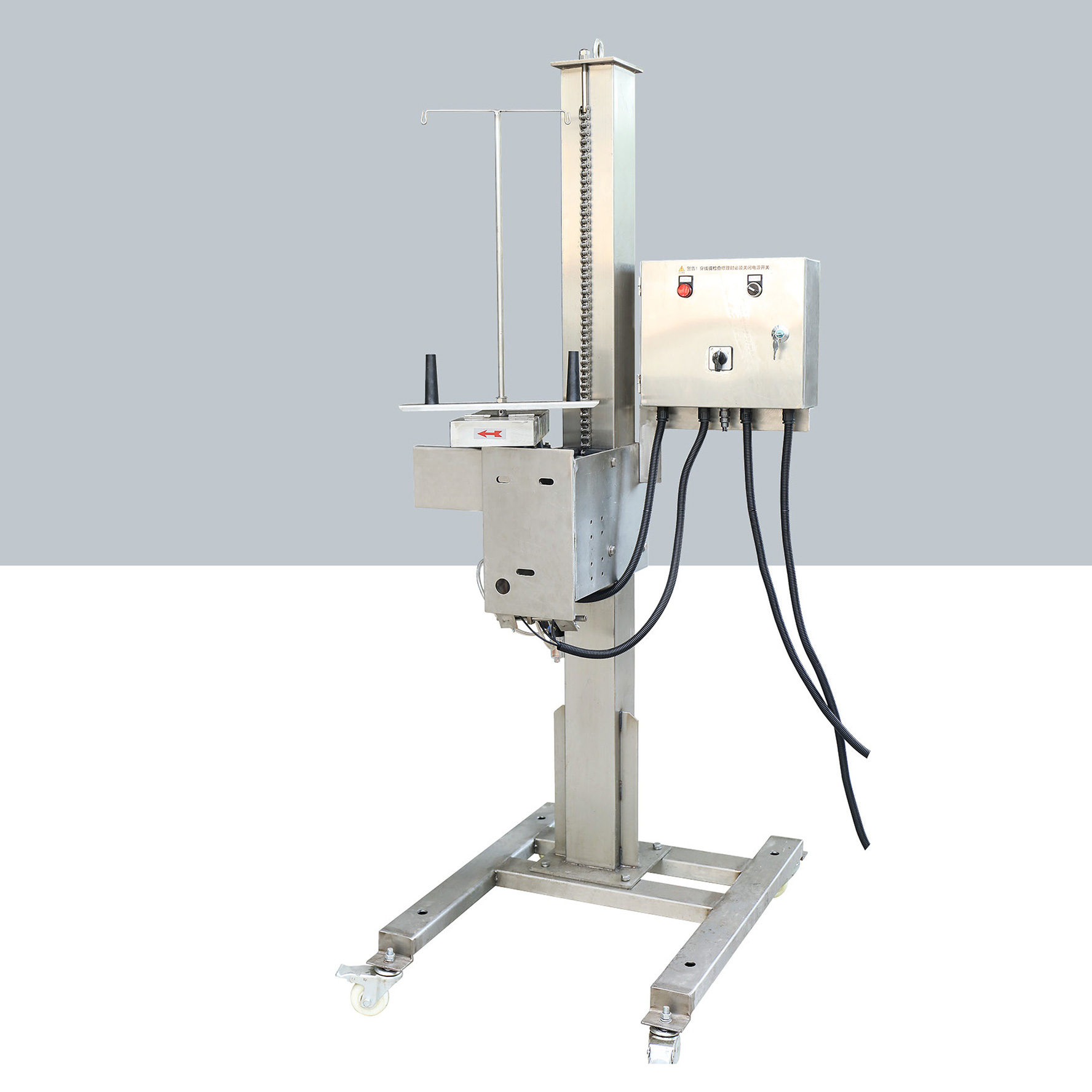

SZ-3 Square Pedestal with Frequency Controlled Speed is support device for bag closing machine head and feed-in device. Constituted by a sewing head, a feed-in device, a column, a motor for the sewing head, and electrical equipment, it can work together with conveyor to complete the bag stitching assignments. The height of sewing head and feed-in device can be manually adjusted so as to meet different bag height. Frequency Control System is installed on it to control the speed of sewing head.

Match sewing head: GK35 series head, DS-9 series head.

Technical Parameters

Material	304,316L stainless steel
Motor	370W, AC380V, 50HZ (or according to customer’s request)
Height of bags	400-900mm, or according to customer’s request
Height of the pedestal	1.6M
