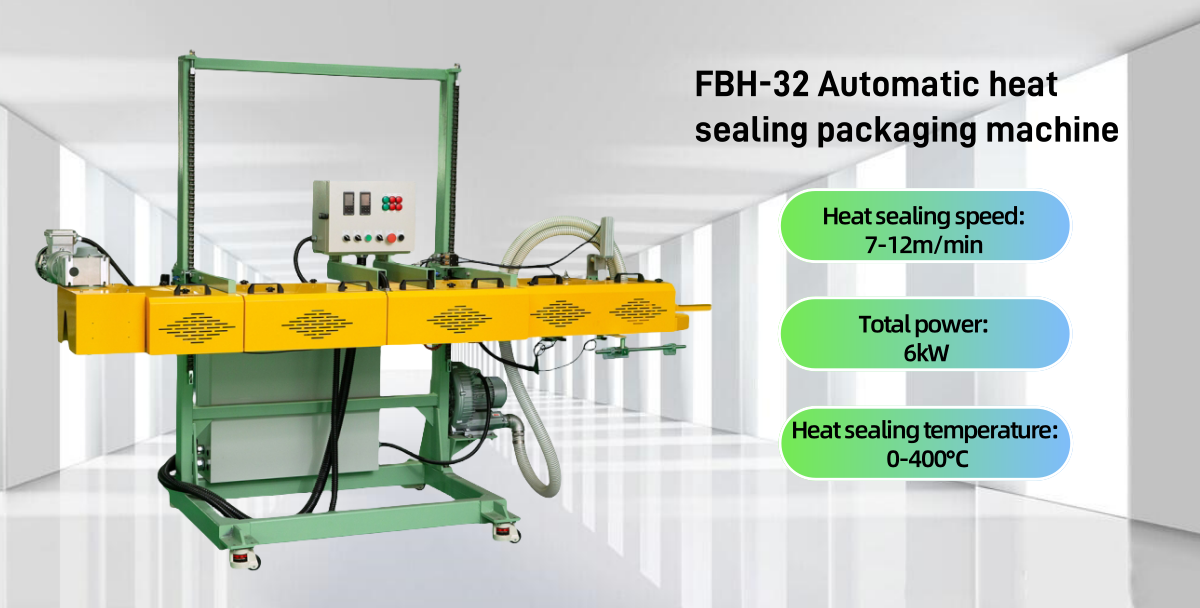

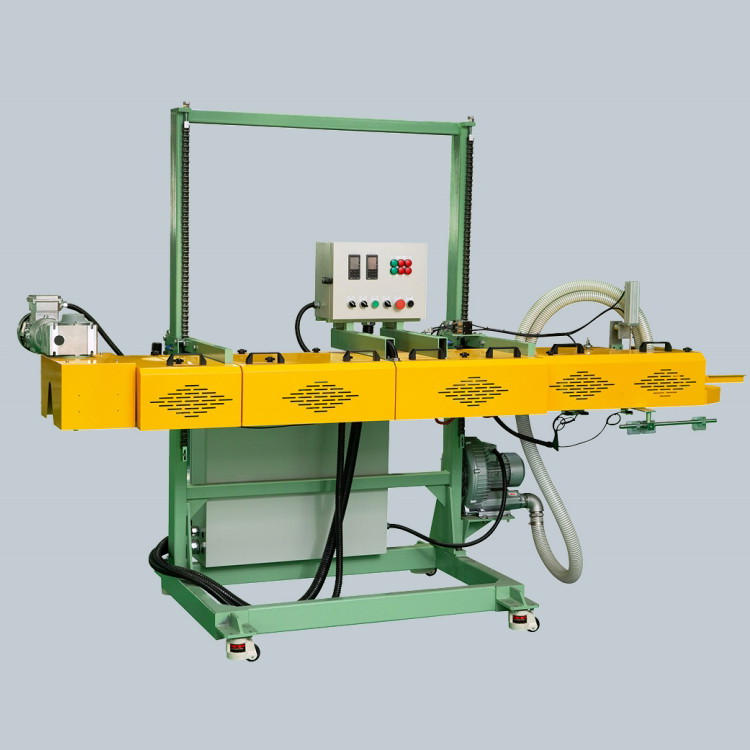

FBH-32 Automatic heat sealing packaging machine

Heavy duty plastic bag automatic heat sealing machine working process:

bag mouth cleaning -cutting knife: trimming bag mouth (optional)-plastic bag heat sealing (4 sets to heating blocks+1 set of heat dissipation blocks: PTFE sealing tape to prevent direct contact between the heating block and the bag, to protect the bag surface from sticking to the heating block)-pressure roller pressing-plastic bag cooling (2 sets of cooling blocks)-pressure roller embossing.

Technical Parameters

heat sealing speed	7-12m/min
Heating block Power(kW)	0.5*8
sealing machine power(kW)	0.55
bag mouth cleaning power(kW)	1.5
Total power(kW)	6
Machine size(LengthxWidthx height)(mm)	3120x1092x2052
Weight (kg)	about 550
heat sealing height(mm)	800-1700( From the ground)
Heating sealing width(mm)	8-10
Heating sealing temperature	0-400
Application	(PE)(PP)(FILM)
Film thickness(mm)	≤1.0
