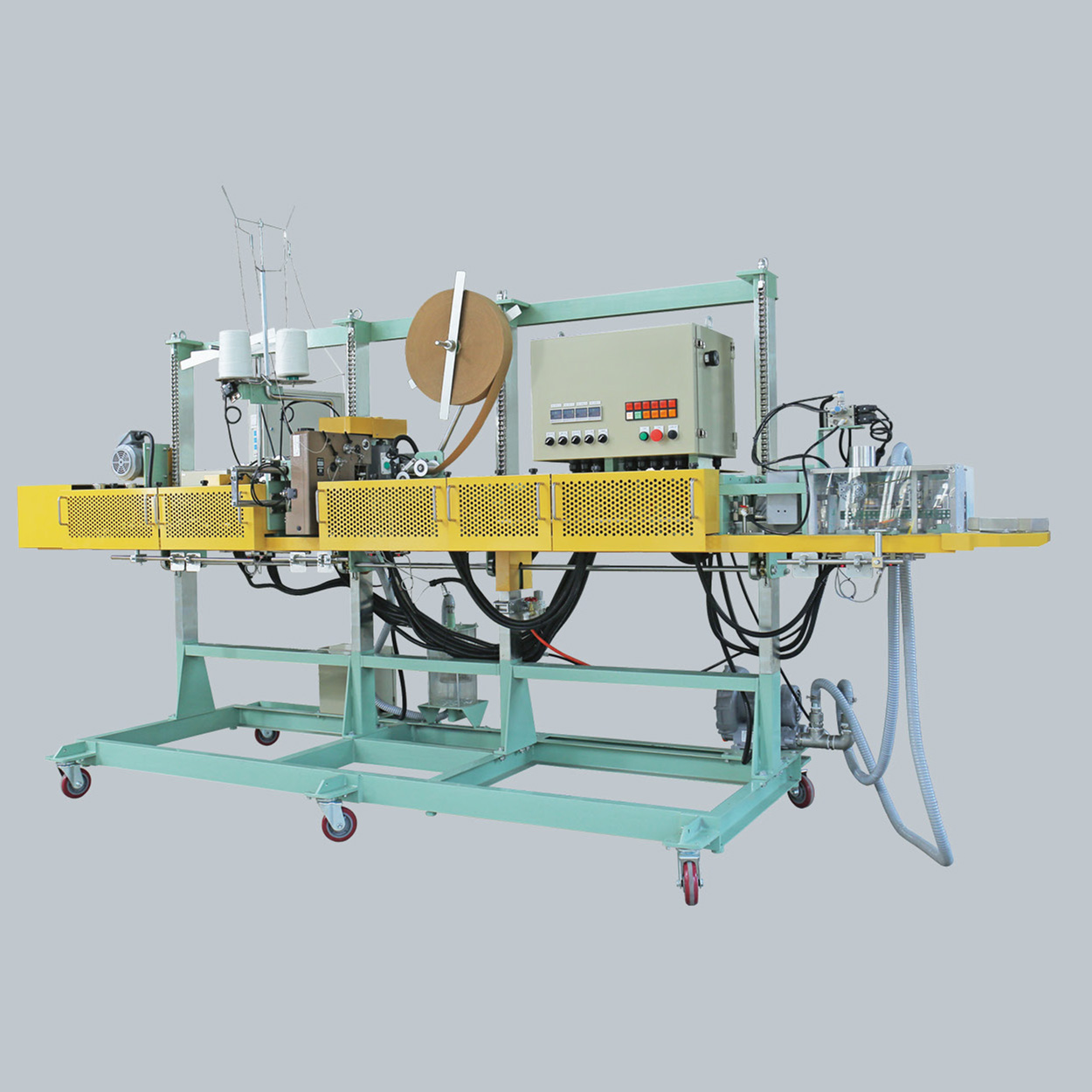

KS-242D Automatic heat sealing packaging machine

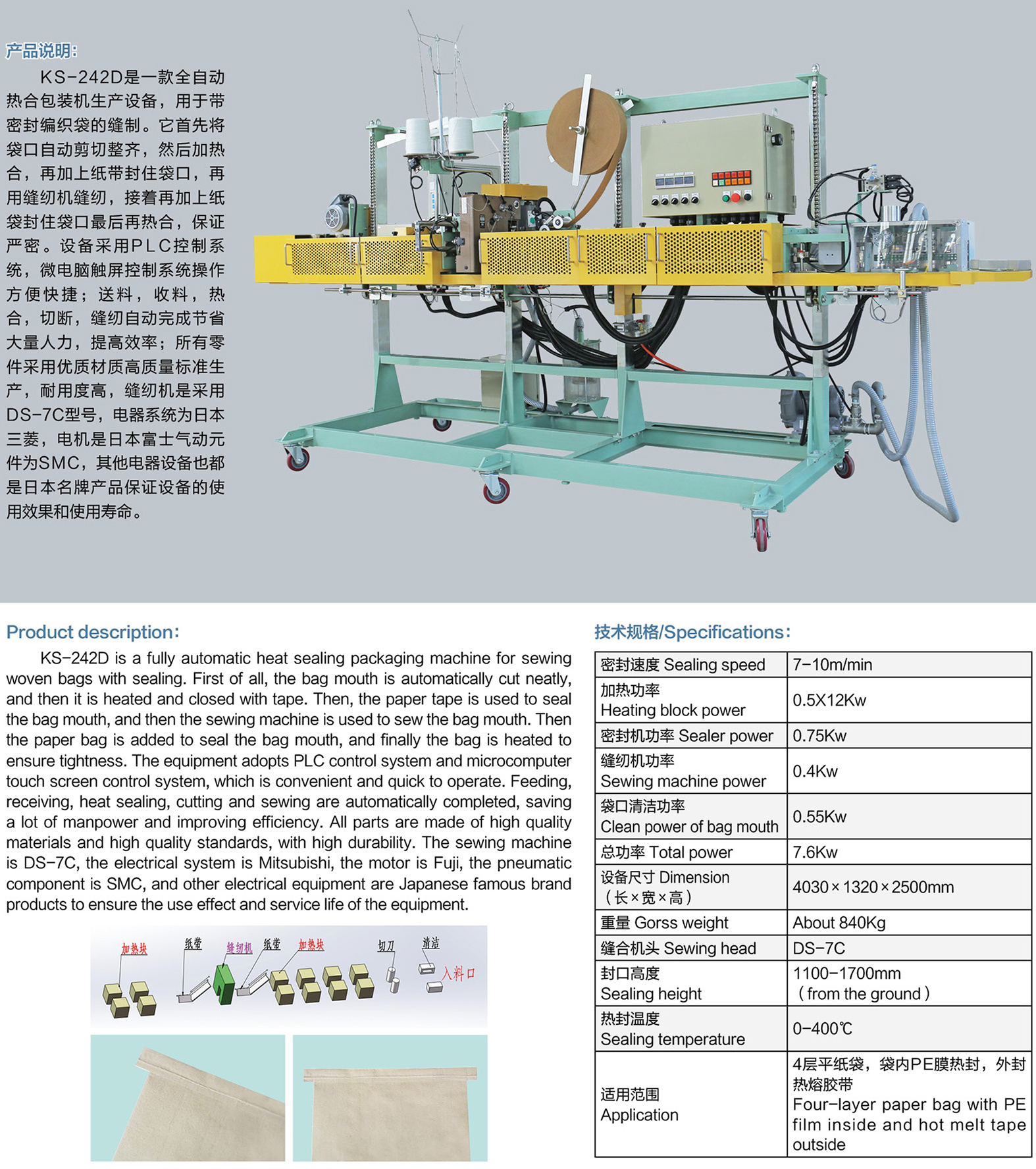

Product description:
KS-242D is a fully automatic heat sealing packaging machine for sewing woven bags with sealing. First of all. the bag automatically cut neatly mouth, and then it is heated and closed with tape. Then the paper tape is used to sealing the bag mouth.and then the sewing machine is used to sew the bag top mouth. Then the paper bag is added to seal the bag mouth, and finally the bag is heated to the paper bag is added to seal the bag ensure tightness. The equipment adopts PLC control system and microcomputer touch screen control system, which is convenient and quick to operate. Feeding.receiving, heat sealing, cutting and sewing are automatically completed. saving lot of manpower and improving efficiency. All parts are made of high quality materials and high quality standards, with high durability. The sewing machine is DS-7C, the electrical system is Mitsubishi, the motor is Fuji, the pneumatic component is SMC, and other electrical equipment are Japanese famous brand products to ensure the use effect and service life of the equipment.

Technical Parameters

Sealing speed	7-10m/min
Heating block power	0.5X12Kw
Sealer power	0.75Kw
Sewing machine power	0.4Kw
Clean power of bag mouth	0.55Kw
Total power	7.6Kw
Dimension	4030x1320x2500mm
Gorss weight	About 840Kg
Sewing head	DS-7C
Sealing height	1100-1700mm (from the ground)
Sealing temperature	0-400℃
Application	Four-layer paper bag with PEfilm inside and hot melt tape outside
