GKN-2 Series bag making sewing machines_Product_Jinzhifeng (Tianjin) sewing Automation Technology Co., Ltd

product description

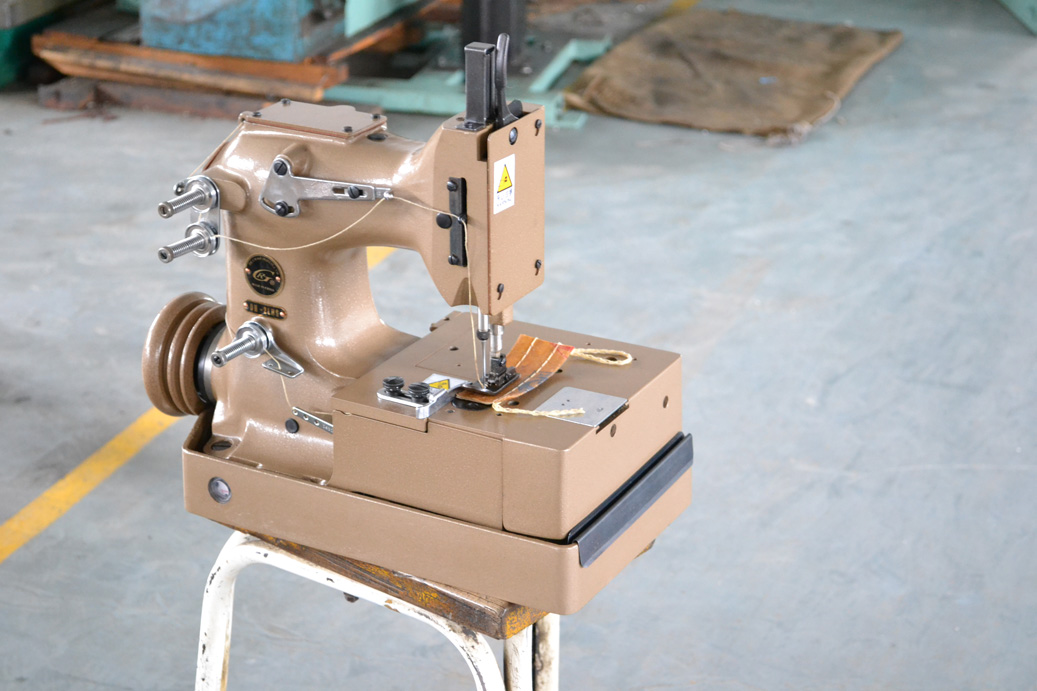

GKN-2 series bag making sewing machine is a single needle, flat feed, double form sewing machine.

Including GKN-2U, GKN-2LU, GKN-2W, GKN-2HS, GKN-2LHS

This machine is suitable for paper bags, PP/PE woven bags, composite paper bags, gunny bags from thin to thick material bag.

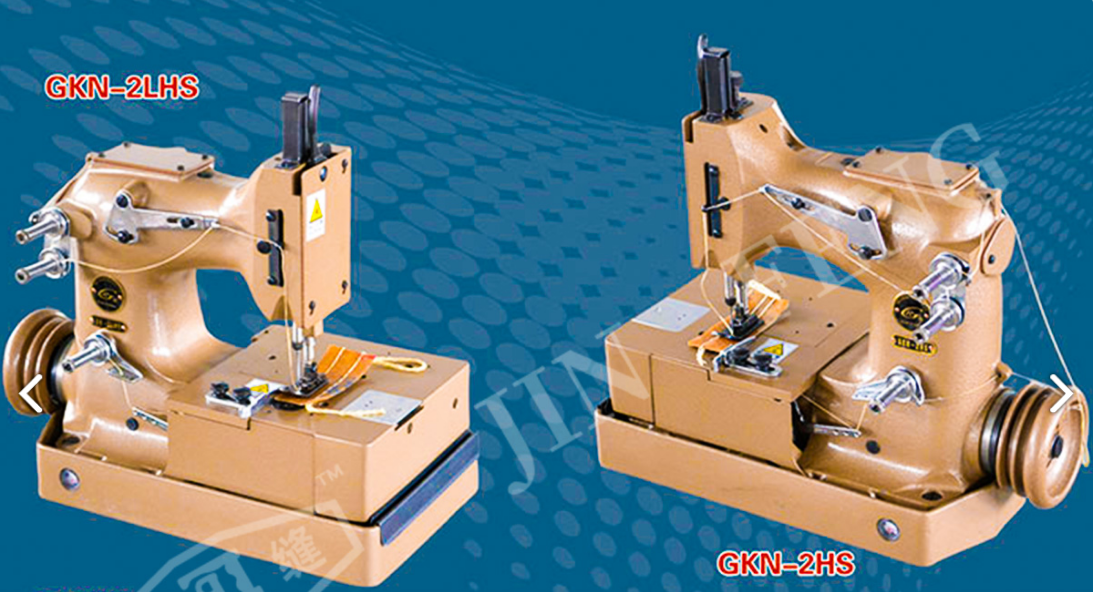

Model GKN-2LHS sewing machine is a new reverse sewing machine developed on the basis of model GKN-2HS. (Please specify whether to use paper bags or PP/PE bags when ordering). (Note: Same as Japan Nulang DN-2HS/DN-2LHS)

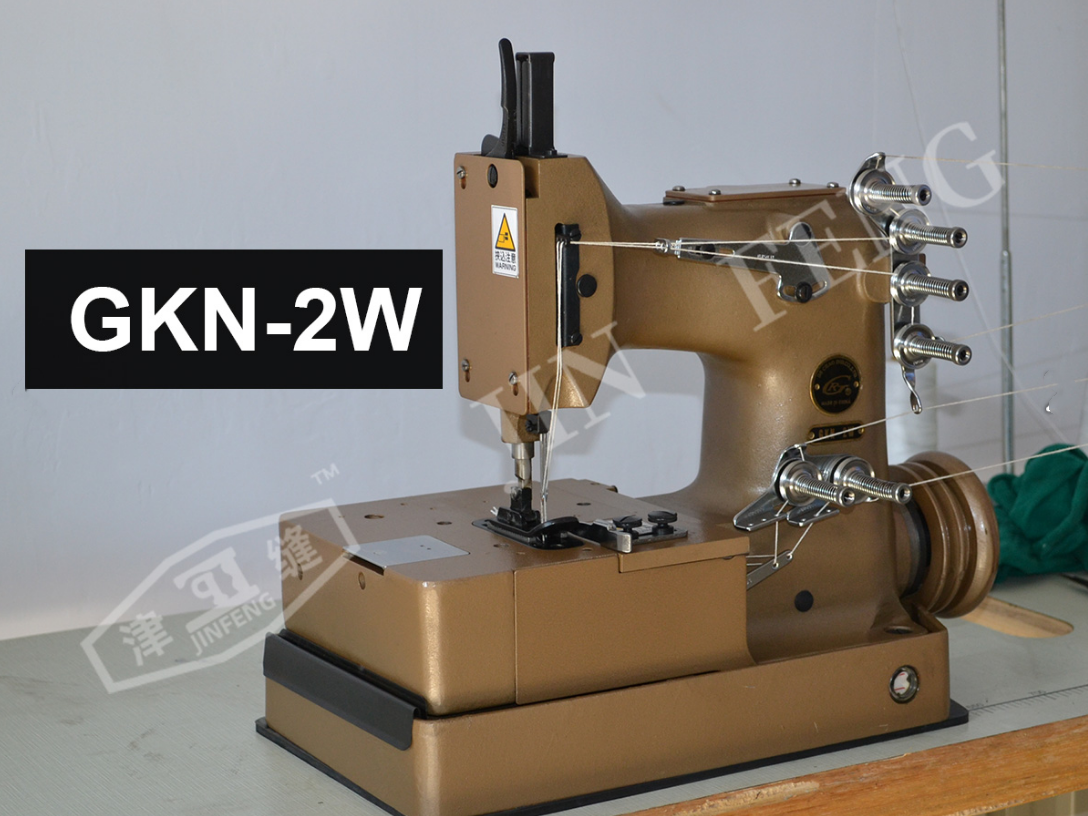

Model GKN-2W is a double needle, flat feed, four line chain sewing machine, the machine is suitable for PP/PE woven bags, burlap bags, thick twill bags, heavy fabric bags, etc. Gkn-2w can be used for double sewing, each sewing type adopts two machine needle and crochet mechanism. The machine can be easily converted into a single needle mechanism. (Note: The same as Neulang DN-2W of Japan)

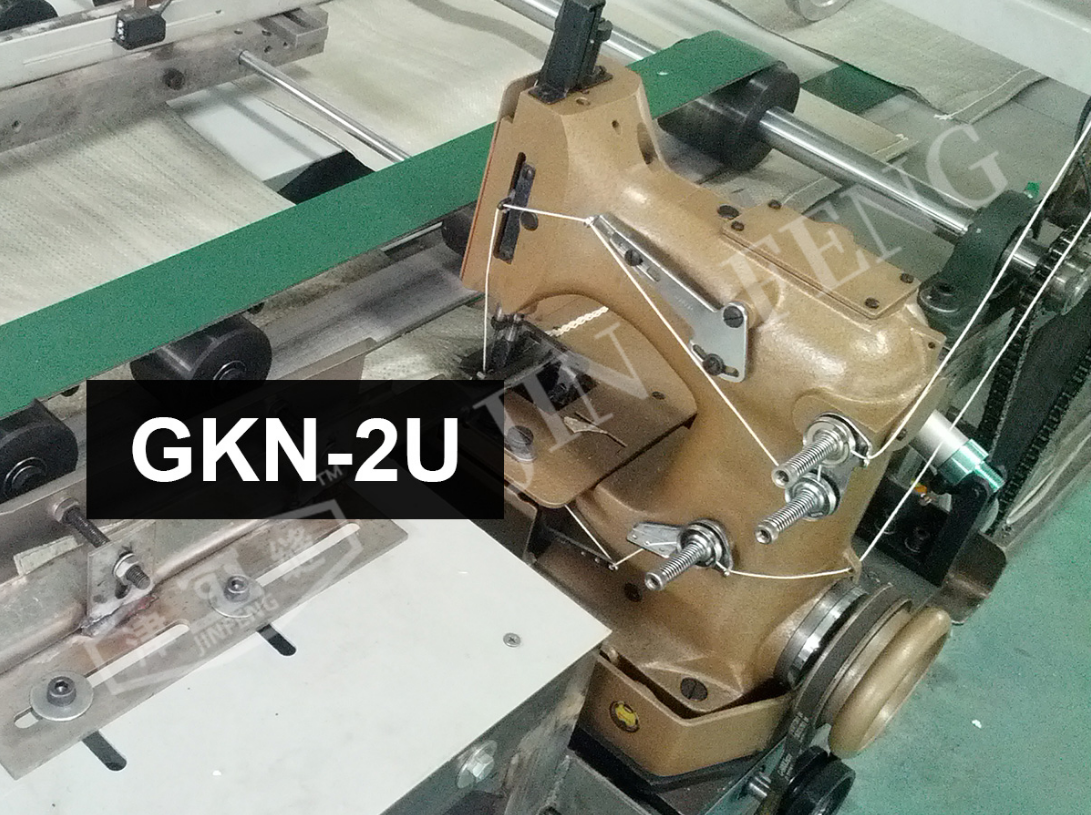

Model GKN-2U is developed on the basis of GKN-2HS series sewing machine synchronous up and down feeding machine, adopts the upper feeding tooth and the lower feeding tooth synchronous feeding, line trace is more stable, especially suitable for peritoneal woven bag surface is relatively slippery. Gkn-2u is the forward direction sewing machine, and GKN-2LU is the reverse direction sewing machine.

You can also choose GK2-8A automatic oil supply sewing machine to replace this product.

Technical Parameters

Sewing speed	2800rpm
Stitch range	7-12mm
Thickness of material	8mm
Sewing stitch pattern	Double chain （401）
Weight	35kgs
Dimension	430×220×400（mm）
